About this product
LCD Button Panels (LBP) are remote panels specifically designed for use with vsmStudio. The panels can be configured to meet every production environment’s requirement. A Single Destination, a Multiple Destination, a XY configuration or a combination of those alternatives is possible. The hardware panels provide multip…Read full descriptionShow less
LCD Button Panels (LBP) are remote panels specifically designed for use with vsmStudio. The panels can be configured to meet every production environment’s requirement. A Single Destination, a Multiple Destination, a XY configuration or a combination of those alternatives is possible. The hardware panels provide multiple pages like the virtual panels. With the vsmStudio panel editor, LBP panels can be configured online or offline where online changes will be displayed in real-time.
The panels are connected to the vsmStudio control system via TCP/IP. The function possibilities of the LBP-series are manifold, for example they can perform routing, control devices - or signal parameters. Secondary functions enable multiple actions at one button push. With the aid of the panel editor of the vsmStudio software several panels can virtually be combined to one big panel. These features allow the implementation of every operating philosophy.

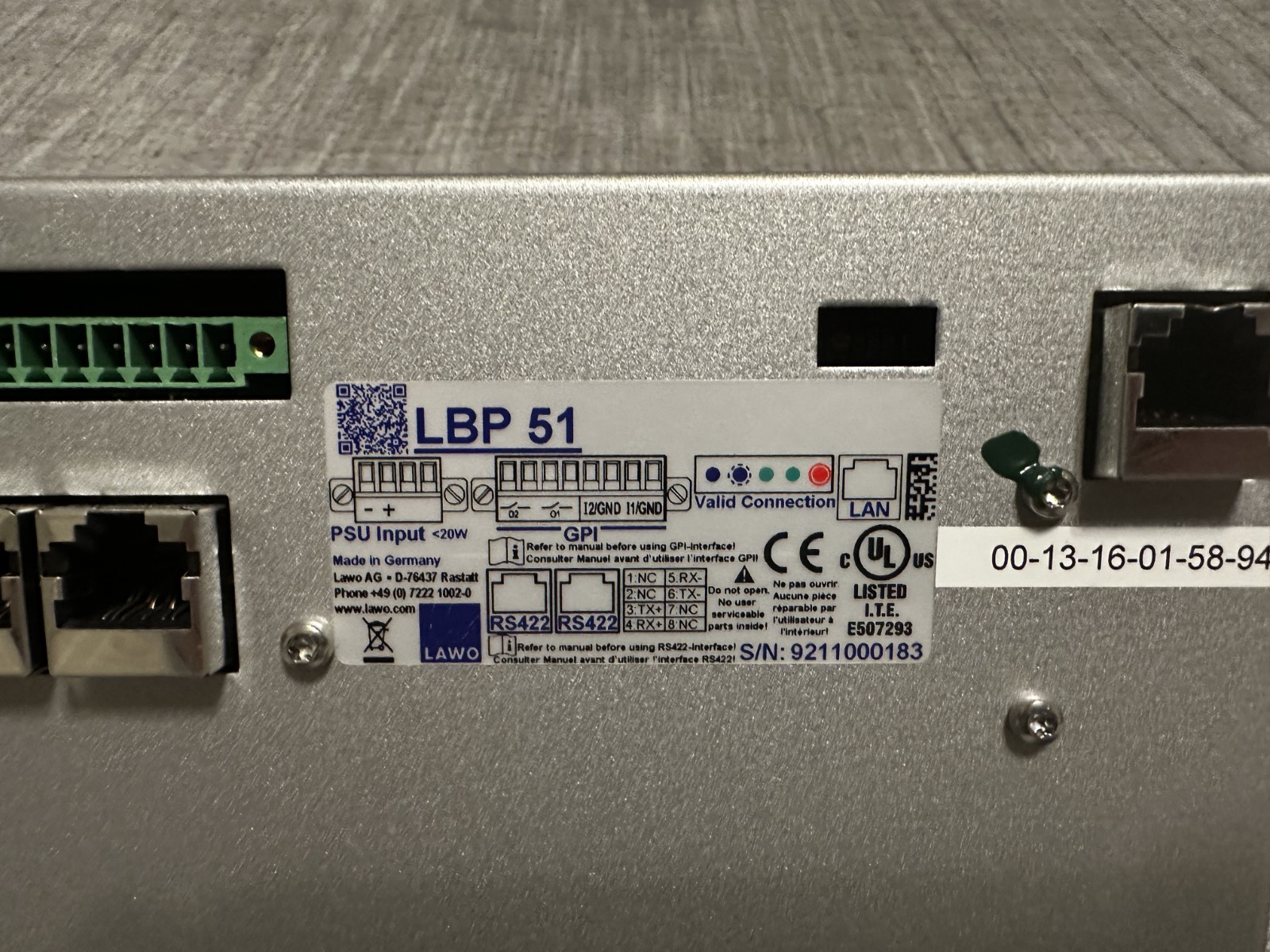

Each LBP-button integrates a Liquid Crystal Display (LCD) with R/G/B backlight enabling the operator to arrange any possible combination of functions, sources and targets across different pages. In addition to the Ethernet port every LBP provides two GPIs and two GPOs and an RS422 port (RS422 for external accessories only). The hardware panels are mounted into a solid steel coil coated housing and can be integrated into every production environment.
Number of buttons
51 LCD Buttons [E3] R/G/B-Backlight
Options
vsmSnap
Communication port
1 x Ethernet
Dimension
483mm x 88mm x 52,8mm (WxHxD): 2 RU
Weight
approx. 1,7kg
Power-Consumption
< 20W
Working-Environment
0°C-50°C non condensing humidity
